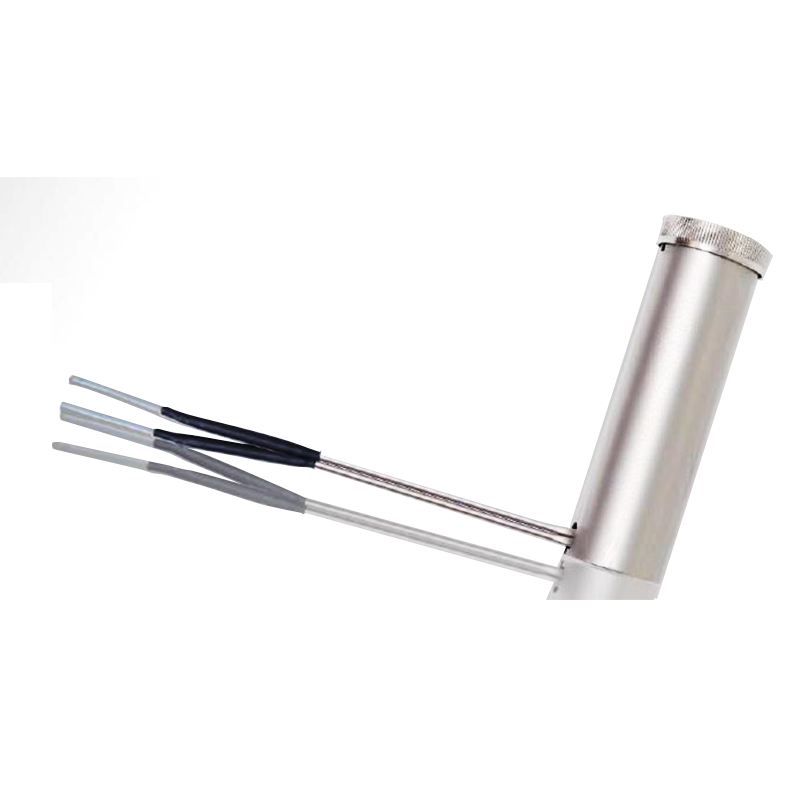

| Spring coil heater | 2.2x1.5, 2.4x1.6, Φ1.8,Φ2.0,Φ2.5 | |||||
| Voltage | 220V、230V、240V | |||||
| Power tolerance 115W-200W | +/-10% | |||||
| Power tolerance 201W-2000W | +5%-10% | |||||
| Out jacket length | 30mm~190mm | |||||
| Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
| Unheating length | 45mm | |||||
| Max power density | 9W/cm² | |||||
| Heating Length tolerance | +/-0.05mm | |||||
| Unheating length tolerance | +/-2.5% | |||||
| Tolerance ID d ≤20mm |
Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d 20mm~30mm |
Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d ≥30mm |
Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance cross section | +/-0.10mm | |||||
| Thermocouple | None | |||||
| Material | 304、321、316 | |||||
| Maximum working temperature | 650℃ | |||||
| Die electrical strength | 800V | |||||
Characteristics
- The inside insulated cover, same as the German GC.
- High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
- Very good performance of the heating uniformity in the heating area.
- The moisture-proof can be IP65, suitable for working in bad condition.
Application
- Injection moulding machine nozzle
- Hot Runner Nozzles & Bushings.
- Packaging machineries
- Hot runner Injection moulds.
- Injection & Blow Moulding Machine Nozzles.
- PET prefrom & Thin wall container Moulds
- Hot runner Manifolds.
