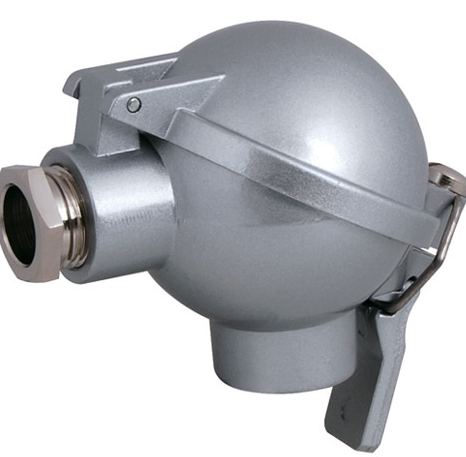

Waterproof NAA Thermocouple Connection Head with Internal Thread

Model: NAA
Unit: Pieces
Productivity: 50000pcs/month
Min order: 50
Packing: 50pcs/carton

Inquiry Back to category

Description

Waterproof NAA Thermocouple Connection Head with Internal Thread

Description:

Weatherproof Head with Internal Threads Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants. The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience. A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat.

This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments. Such as blast or carburizing furnaces, kilns, large ovens and galvanizing baths where their robust construction ensures a prolonged sensor life. Can assemble with thermocouple and resistance bulbs and that with temperature transmitters installed.

Specifications:

1. NAA Thermocouple head

2. Type: NAA, all type available

3. Accessory: cover sealing and cable gland sealing in silicone free material

4. Protection level: IP65 of IEC529 Enclosure protection class

5. Terminal block: 2P, 3P, 4P, 6P ,8P

6. Terminal block material: bakelite or ceramic.

7. Material: Aluminum(ADC-12), Stainless steel

8. Wire entry: M20*1.5,

9. Probe entry: M12*1, M16*1, G1/2’’, NPT1/2’’

10. Standard wire entry and probe entry;

11. Wide range of specification;
