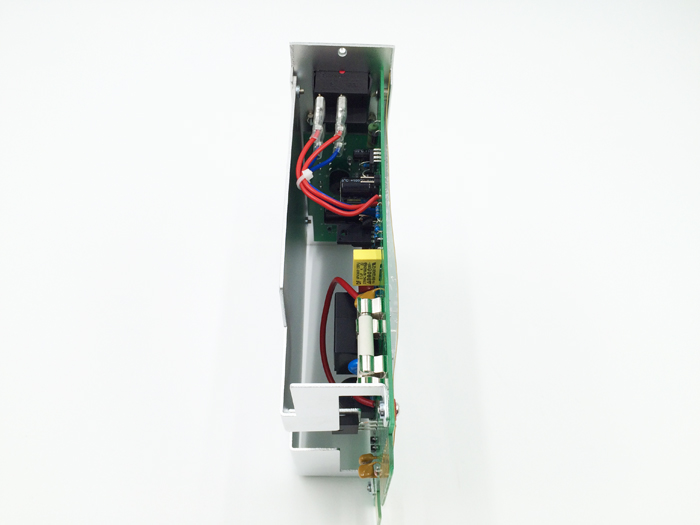

Performance
Specifications
Power requirements: AC85~265V, 50/60Hz
Sensor type: J or K thermocouple
Setting range: 0℃~450℃ (32℉~842℉)
Control Accuracy: ±0.25% of full scale
Control Mode: Auto PID or Manual
Control Output Device: Triac.
Load Capability: 15A / 240Vac; Optional 20A
Operating Temperature: 0℃~55℃(32℉~131℉)
Operating Humidity: 10~80%, non-condensing
Storage Temperature: -20℃~70℃ (-4℉~158℉)
Characteristic
Short circuit, open circuit and system failure dual
protection；
Segmentation heating and soft-start function
Pattern recognition，Plug
and Play
Automatic or manual heating can be selectable
Degree C or F selectable
Thermocouple Type J standard, Type K selectable
Automatically compensates for ambient temperature
Over Temperature automatic protection
Automatic identification of load power ,Remarkable energy
saving Heater and thermocouple
dislocation identify the alarm function
With current detection function
① Power Switch: Turn on or turn off.
② PV: a) Normal mode: Present value.
b) Parameter mode: Parameter name.
c) Power output mode: Present value.
d) Alarm mode: Error code about sensor.
③ SV: a) Normal mode: Setting value.
b) Parameter mode: Parameter value.
c) Power output mode: “u”+ power output (%)
d) Alarm mode: Error code about triac or load.
④ Temperature Unit: Celsius (C) or Fahrenheit (F).
⑤ Down Key: Used to decrease setting number.
⑥ Up Key: Used to increase setting number.
⑦ SET Key: Used for parameter Calling up/Registration.
⑧ Mode Key: Press it for more than 1sec. to switch control mode:
Normal (Auto) Standby Manual AT (Auto Tune).
** When shift to AT mode, press SET key in 3s to start
auto-tuning, or the controller auto-back to normal mode.
⑨ Disp Key:
a) Press it for more than 1sec. to switch display mode:
Normal mode: PV and SV display;
Power output mode: PV and power output (%) display
Control mode locked mode: disable to switch control mode.
b) Press it to keep silence for 3min. when the buzzer is beeping.
⑩ AT indicator: Light up when controller is in AT mode.
⑾ Manual indicator: Light up when controller is in Manual mode.
⑿ Standby indicator: Light up when controller is in Standby mode.
⒀ Normal indicator: Light up when controller is in Normal mode.
⒁ Soft indicator: Light up when controller is in soft start mode.
⒂ Mounting hole .
The data in
the table below is measured in March. using the instrument is Fluke 724，same heater and the same TC
(sensor), the test environment and conditions are exactly the same too.
Table 1 Adjustment period comparisons
|
|
First cycle |
Second cycle |
Third cycle |
|||||||
|
Brand |
Set |
Measured （High） |
Measured （low） |
period |
Measured （High） |
Measured （low） |
period |
Measured （High） |
Measured （low） |
period |
|
MASTIP |
200℃ |
213.6 |
192.7 |
8′00″ |
201.2 |
196 |
8′20″ |
200 |
196.7 |
3′44″ |
|
Ours |
200℃ |
205.2 |
199.9 |
1′38″ |
201.8 |
200.5 |
2′36″ |
201 |
200.5 |
2′45″ |
|
MASTIP |
230℃ |
236.5 |
220.1 |
4′22″ |
230.3 |
226.3 |
3′36″ |
227.8 |
227.1 |
3′40″ |
|
Ours |
230℃ |
233.5 |
228.7 |
1′30″ |
231.1 |
229.2 |
2′14″ |
230.5 |
229.4 |
1′41″ |
|
MASTIP |
260℃ |
272 |
255.7 |
5′05″ |
260.7 |
256.3 |
4′09″ |
259.9 |
256.4 |
4′00″ |
|
Ours |
260℃ |
263 |
257.9 |
1′43″ |
260.6 |
258.2 |
1′22″ |
260 |
258.6 |
1′30″ |
Table.2
Set
Brand
First
cycle
Second
cycle
Third
cycle
Measured（low）
Measured （High）
Measured （low）
Measured（high）
Measured （low）
Measured （high）
200℃
DME
195
204
196．1
203．8
195．5
204
MASTIP
196
201．2
196．7
200．4
197．3
199．7
Ours
200．5
201．8
200．5
201
200
200．9
Set
Brand
First
cycle
Second
cycle
Third
cycle
Measured（low）
Measured （high）
Measured（low）
Measured（high）
Measured（low）
Measured （high）
230℃
DME
228．3
231．3
228．7
229．6
228．6
229．4
MASTIP
226．3
230．3
227．1
227．8
227．5
231．3
Ours
229．2
231．1
229．4
230．5
229．6
230．2
Set
Brand
First
cycle
Second
cycle
Third
cycle
Measured（low）
Measured （high）
Measured（low）
Measured（high）
Measured（low）
Measured （high）
260℃
DME
254．1
263．5
254．6
262．4
255．6
262．6
MASTIP
256．3
260．7
256．4
259．9
257
257．7
Ours
258．6
260．6
258．6
260
258．7
259．6
